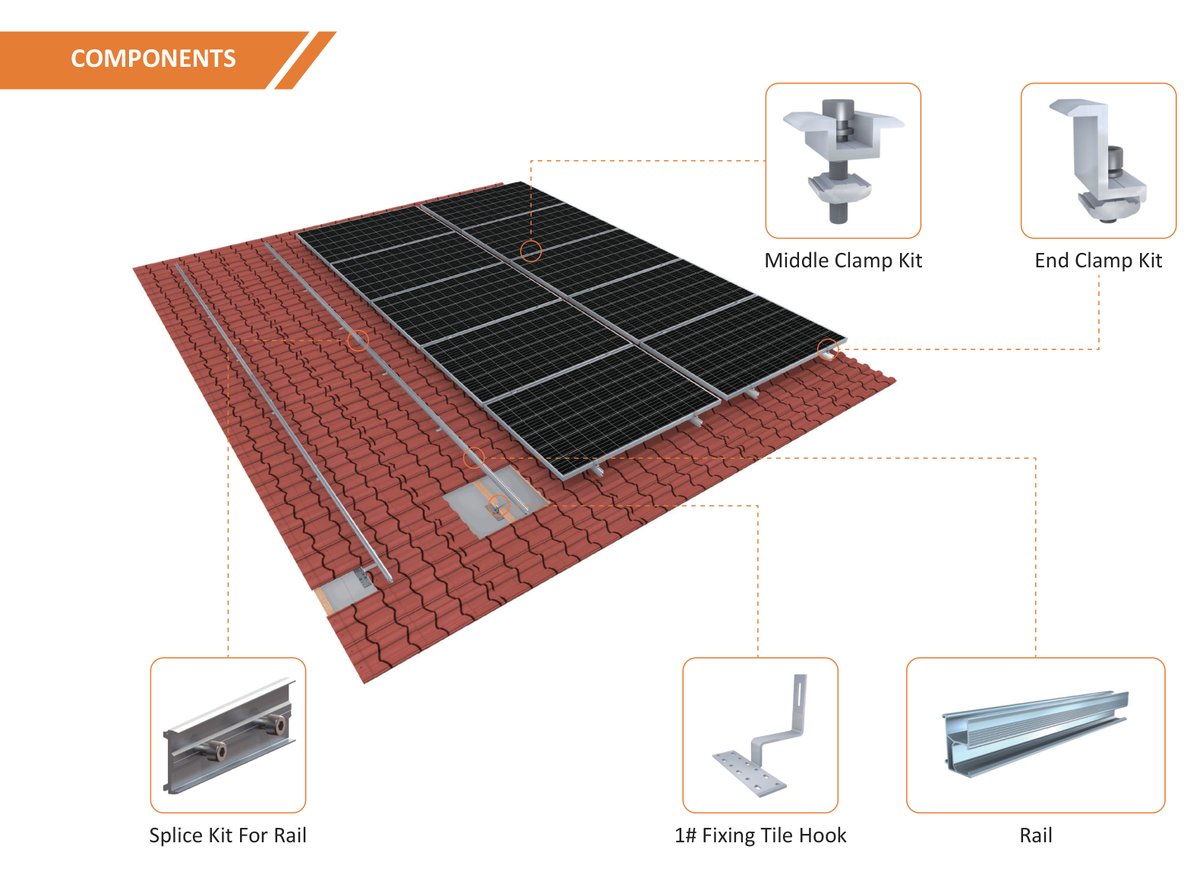

🔩 Adjustable Hooks for Every Tile Profile
Econo Solar

Tile Roof Mounting

Hooks and adjusting kits for ceramic, concrete and slate tile roofs

Econo Solar tile roof mounting covers all common tile profiles — flat, Roman, Spanish, scallop and slate — with 13 hook types and three adjusting kits. SUS304 stainless steel construction, height-adjustable design accommodates tile thickness variation, and pre-treated to prevent galvanic corrosion against ceramic surfaces.

6
SKU Variants
25 yr
Lifespan
≤45 m/s
Wind Load
Request a Quote → Download Catalogue
Product Variants

6 Configurations for the Tile Roof Mounting Family

Each variant is specified to match a specific roof profile, environment or load requirement. Bulk discounts apply for project-scale orders.

SKUNameTypeSpecifications
Hook 1# – 3#Flat Tile HooksFlat / German tileSUS304 · M10 bolt · Height-adjustable 0-30 mm
Hook 4# – 6#Roman Tile HooksCurved Roman / MediterraneanSUS304 · M10 bolt · Curved profile match
Hook 7# – 9#Spanish Tile HooksS-tile / PantileSUS304 · Wide base · Two-fastener mount
Hook 10# – 13#Slate & Specialty HooksSlate / Stone-coatedSUS304 · Slim profile · Low-visibility install
SE01 Adjusting KitStandard Adjustment KitUniversal0-40 mm height range · 6005-T6 aluminium
SE02 / SE11 KitsExtended Adjustment KitsCustom-fitWider range + multi-axis adjustment for complex roofs
Technical Specifications

Common Standards Across the Mounting Range

All Econo Solar mounting structures meet these baseline specifications. Project-specific load and wind calculations provided with every quote.

BrandEcono Solar
Primary MaterialAL 6005-T6 aluminium / SUS304 stainless steel
Anodizing≥10 μm (architectural grade)
Wind Load Rating≤45 m/s (ASCE 7 Exposure C)
Snow Load Rating1.5 kN/m²
Tilt Angle Range0–45°
Quality Warranty10 years
Functional Lifespan25 years
Compliance StandardsJIS C 8955:2017 · AS/NZS 1170 · DIN 1055 · ASCE/SEI 7-05 · IBC 2009
Country of ManufactureXiamen, China (OEM/ODM by Sungrow Solar partner)
70+
Patents
10 GW+
Total Installed
100+
Countries Served
25 yr
Functional Lifespan
Applications

Where Tile Roof Mounting Fits Best

Common deployment scenarios for this solution family.

🏡

Residential Villas

European, Mediterranean and Australian tile roofs — single villa to small-estate installations.

🏘

Townhouse Developments

Multi-unit residential complexes with uniform tile specification.

🏨

Hotels & Resorts

Holiday villas and boutique hotels prioritizing aesthetic integration.

⛪

Heritage Buildings

Restoration projects requiring minimal-visibility mounting solutions.

FAQ

Frequently Asked Questions

Engineering and procurement answers for the Tile Roof Mounting family.

Which hook number do I need for my tile?
Send us a photo of the tile with a ruler showing the profile cross-section. We'll specify the correct hook (1#–13#) within 24 hours. Roman tiles typically use 4#–6#, Spanish S-tiles use 7#–9#.
Will the hook leak if installed under existing tiles?
No. Each hook is designed to sit beneath the overlapping tile course with the mounting bolt anchored to the rafter or batten — water flows naturally over the tile above. Proper flashing tape (sold separately) provides additional weather seal.
Can hooks be installed on existing tile roofs without lifting all tiles?
Yes — only the tile directly above the hook position needs to be lifted. A skilled installer can place hooks at a rate of 8–12 units per hour on an established roof.
What's the corrosion warranty on SUS304 hooks?
10-year quality warranty against material defects, with a 25-year functional lifespan certified to ISO 12944 C5 (severe industrial / coastal). Stainless steel is the only material rated for direct contact with ceramic tile glaze without electrolytic degradation.
Do you ship to Australia / NZ?
Yes — tile roof systems are certified to AS/NZS 1170 with cyclone-rated configurations available on request. Lead time 14–21 days FOB Xiamen for stock SKUs.

Quote Tile Roof Mounting for your project

Send us your roof profile photo + project size. Detailed BOM and FOB Shanghai pricing within 24 hours.
